Simple AF for RPi¶
Do you want Simple AF on your non Creality OS printers? Well Simple AF for RPi is for you, you can install it on pretty much any debian based (rasbian, dietpi, opi debian server, etc) Rpi like SBC, which also includes CM like the CM4, CM5 and CB range from BTT as well as your standard Raspberry Pis, Orange Pis, etc.
Warning
This feature is classed as experimental, every effort will be made to avoid breaking existing installations, but this cannot be guaranteed.
Supported OS¶
Simple AF is best supported by RPi or OrangePi running a version of debian 11 or 12 (which includes Orange Pi Debian, Rasbian, Arbian, whatever BTT is doing, etc).
Raspberry Pi OS¶
So far been tested to work on a pi 3, 4 and 5, it does not matter whether you use 32 or 64 bit OS.
It is recommended to use the Rpi Imager and choose Raspberry PI OS Lite (64-bit) or Raspberry PI OS (Legacy, 64 bit) Lite
You must login as the pi (Default password is raspberry) user to perform the installation, you are not allowed to run the installer as root!
Warning
There is a bug with RPi Imager where its not correctly enabling Wifi on first boot, workaround is using an older version of Rpi Imager https://github.com/raspberrypi/rpi-imager/issues/1067
Orange Pi OS¶
Please note that OrangePi OS (based on Arch) is not supported and will fail to install because the installer assumes a debian based OS, this is unlikely to change anytime soon.
Orange Pi Debian OS¶
Testing has been done on an Orange Pi Zero 3 W running a server image available from: https://drive.google.com/drive/folders/10zlO-0mMz-fqRQOKAOWX-mQA_UbN_C1n
Note
Please make sure to set bootlogo=true in the orangepiEnv.txt before booting for the first time so that
the boot display works correctly.
When running the sudo apt-get update you might get an error complaining about Err:36 https://repo.huaweicloud.com/docker-ce/linux/debian bullseye/stable arm64 Contents,
this is a long standing bug (from 2023) that was never fixed and the work around is to run:
You must login as the orangepi (Default password is orangepi) user to perform the installation, you are not allowed to run the installer as root!
Warning
By default the orangepi user cannot sudo without providing a password, the installer will create a /etc/sudoers.d/nopasswd file
to enable no password sudo for the orangepi user.
DietPi OS¶
Basic testing has been done with DietPi (Bookworm) running on an Orange Pi 3 Zero W
I had some trouble getting DietPi setup in my home network which uses a PiHole connected to cleanbrowsing.org DNS family filter which prevented the default DNS settings from working.
I updated the dietpi.txt as follows:
AUTO_SETUP_AUTOMATED=1
SURVEY_OPTED_IN=0
CONFIG_CHECK_CONNECTION_IP=8.8.8.8
CONFIG_CHECK_CONNECTION_IPV6=2001:4860:4860::8888
CONFIG_CHECK_DNS_DOMAIN=google.com
CONFIG_CHECK_DIETPI_UPDATES=0
CONFIG_CHECK_APT_UPDATES=0
CONFIG_SERIAL_CONSOLE_ENABLE=0
You do not want the OS doing updates while prints are going so updating should be controlled by Moonraker only. I reconfigured the DNS check configuration to use google as the quad9 DNS was not resolved by cleanbrowsing.org, of course your situation may be completely different and the above options might be overkill.
I discovered that there is a few hoops to jump through before getting the OrangePi setup, no idea if this is due to some weird combination of settings above, but I discovered you have to physically power off the device after the first run finishes and the pi hole is supposedly rebooted, otherwise ethernet does not come back.
What I did was login as root after powering up the device for the first time and it will tell me that first run setup is going on in a different screen and will eventually let me know a restart will be required, I wait until I am kicked from the SSH session and then I give it a minute and power cycle the pi.
Then login as the dietpi (Default password is dietpi) user to start the installation, after logging in, you may be told that first run setup is still going,
give it a few minutes and you should be greeted with a login prompt.
Armbian¶
Should work fine but no formal testing has been performed as yet!
BTT OS¶
Should work fine but no formal testing has been performed as yet!
Installation¶
Danger
Do not try and install Simple AF for RPi on Mainsail OS or onto an existing klipper environment which has been setup using kiuah
Cloning repo¶
The following commands should be executed to get the repo locally:
sudo apt-get update
sudo apt-get install -y git
git clone https://github.com/pellcorp/creality.git ~/pellcorp
Installing¶
The installation command is very similar to K1 series:
- Where
--printer <ThePrinter>is a predefined, downloaded or downloadable printer definition - Where
--mount <TheMount>is only required for some predefined printer definitions - Where
<TheProbe>is one of bltouch, microprobe, cartotouch, beacon, klicky, btteddy or eddyng.
Predefined Printer¶

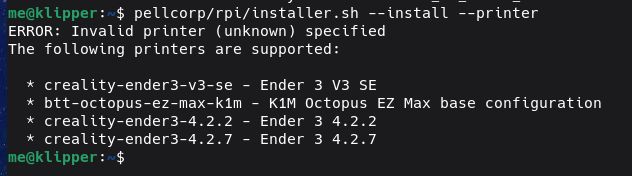

You need to figure out what kind of mainboard you have because that will dictate whether you can use a predefined printer cfg file or you need to provide your own. The easiest way to find out what predefined printers are available is to run the command:
Note
For the --printer argument specify the ID of the printer so for instance --printer creality-ender3-v3-se
Downloaded or Downloadable Printer Definition¶
Refer to Printer Definitions for how to craft a base printer cfg file, note at the moment the installer does not support a printer cfg broken up into separate files, it should be a single .cfg file only.
You can specify a http:// or https:// url for the --printer parameter or you can download the file locally yourself!
Note
For the --printer argument specify the url of the file, so for example --printer https://github.com/pellcorp/klipper-rpi/blob/master/config/printer-creality-ender3-s1plus-2022.cfg
or reference a local file if you did download it locally, so for example --printer ~/printer-creality-ender3-s1plus-2022.cfg
Choose a Probe¶
You need to choose a probe one of:
Choose a mount¶

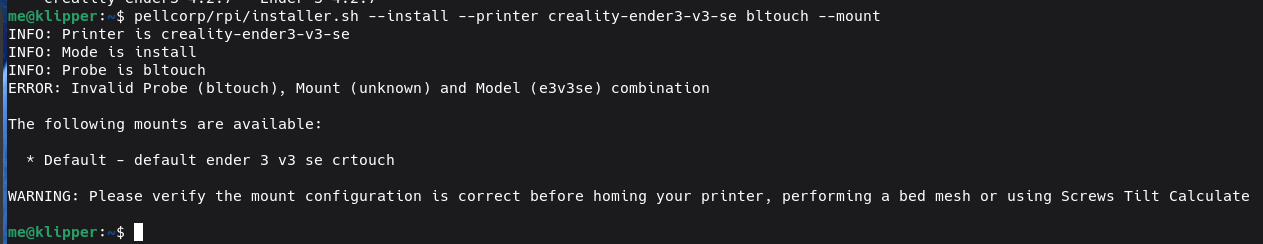

If you have chosen a predefined printer its possible it will require you to choose a mount, you can run the installer with the --mount option without an argument to get a list of possible mounts:
KlipperScreen and GrumpyScreen¶
Neither of these is installed by default, you will need to manually install one or the other after the main installation has finished, its easy enough, so for KlipperScreen:
For GrumpyScreen:
Post Installation issues¶
Input Shaper and Klippain¶
Klippain is only pre-installed on corexy printers
If you do not define [adxl345] and [resonance_tester] sections in your base printer cfg, the installer will install
klippain but not add the [include klippain.cfg], so if you setup adxl and resonance tester config after installation
you should also manually add the [include klippain.cfg] to your printer.cfg as well!
If you do not have a [resonance_tester] section, the TEST_RESONANCES, SHAPER_CALIBRATE, INPUT_SHAPER and INPUT_SHAPER_GRAPHS
macros will not work!
MCU Firmware¶
Its easier to install Simple AF and then build the firmware with make menuconfig afterwards, just be aware that
on first boot its likely your MCU will either not connect or klipper will complain about Protocol version issues,
this is to be expected.
Boot Display¶
The boot display step is currently optional and requires some manual steps, so you install the boot display via:
Raspberry Pi OS¶
To get the splash screen working on raspberry pi OS you have to jump through a few additional hoops including installing:
And then enable the splashscreen in raspi-config!
Note
Installing rpd-plym-splash actually displays the raspberry pi desktop theme so if you enable the splashscreen after running the installer for the boot-display, you will most likely need to rerun:
KlipperScreen¶
The installer will automatically install KlipperScreen on Pi4 or above, there are concerns of overloading a pi3 or less with klipperscreen so the installer will install grumpyscreen for raspberry pi 3 devices only!
You can force the installation of KlipperScreen afterwards by running:
sudo systemctl stop grumpyscreen
sudo systemctl disable grumpyscreen
~/pellcorp/rpi/install-klipperscreen.sh
Note
If you do the above on a device other than a Raspberry Pi 3, the first two commands will likely fail with a message like:
Failed to stop grumpyscreen.service: Unit grumpyscreen.service not loaded. this is fine and can be ignored, for devices
other than a Raspberry Pi, like OrangePi or the like you can skip straight to installing KlipperScreen, just be aware
that KlipperScreen is very resource hungry, I do not recommend running this on a low spec device.
Grumpyscreen¶
BTT HDMI Screen¶
For whatever reason Grumpyscreen does not work nicely with a HDMI screen its on my list of TODOs to fix this, if possible setup Simple AF on a Pi4 or above to get KlipperScreen.
BTT DSI Screen¶
Support for grumpyscreen will be provided for BTT DSI screens but you need to setup the screen to be correctly configured.
https://github.com/bigtreetech/TFT43-DIP

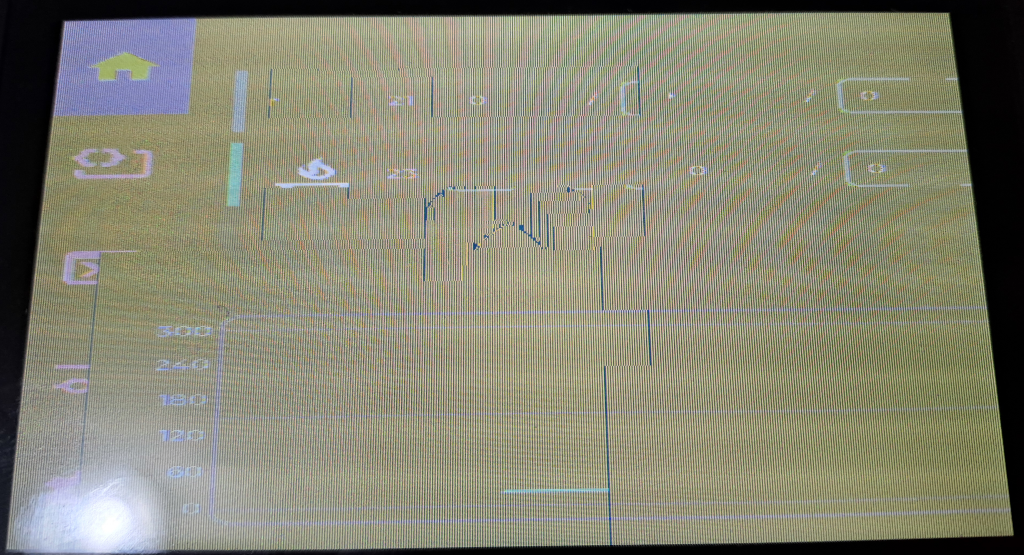

By default when grumpyscreen starts its probably going to look like:
The following changes are required to fix that:
Need to download the dtbo file:
sudo wget https://raw.githubusercontent.com/bigtreetech/TFT43-DIP/master/gt911_btt_tft43_dip.dtbo -O /boot/overlays/gt911_btt_tft43_dip.dtbo
Needs this in /boot/firmware/config.txt (for bookworm) or /boot/config.txt (for bulleye)
[all]
gpu_mem=160
dtoverlay=vc4-kms-dpi-generic
dtparam=rgb666-padhi,clock-frequency=32000000
dtparam=hactive=800,hfp=16,hsync=1,hbp=46
dtparam=vactive=480,vfp=7,vsync=3,vbp=23
dtparam=backlight-gpio=19
dtparam=rotate=0
dtoverlay=gt911_btt_tft43_dip
dtparam=rotate_0
And please make sure you disable this line:
Note
The gpu_mem=160 is really important otherwise Grumpyscreen won't display correctly.
Crowsnest (Camera Support)¶
Crowsnest is automatically installed for you but a single webcam is configured and points at /dev/video0, this
won't always end up being a valid webcam.

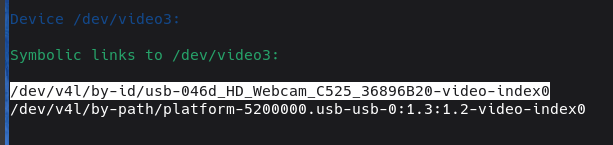

To find out what devices are available you can use the crowsnest tool like so:
Warning
According to the crowsnest project, its always preferable to use full paths, especially in Mutlicam setups using /dev/video* will lead to errors or unexpected behaviours.
Source: https://crowsnest.mainsail.xyz/configuration/cam-section#device
Rpi Camera¶
I've not found a way to get the V1 cam working with rasbian 12, only with 11 and enable classic legacy cam support and then it just works.
