Eddyng
Experimental Status¶
Warning
This feature has just been released and it is under active development from vvuk over at https://github.com/vvuk/eddy-ng/, so there are likely to be gotchas and issues, please bare that in mind. Its likely you will be required to reflash your eddy a few times before things settle down to just python klipper updates.
Where can I get help?¶
Come on over to the pellcorp discord server, the #simple-af-btteddy
channel has been setup for anyone wanting support for btt eddy.
eddy-ng discord¶
You can also get help from the eddy-ng discord channels on the sovol discord, with the https://discord.gg/djhnkDR2JN link
Firmware requirements¶
This guide assumes you have a K1, K1C or K1 Max and you are running stock creality firmware 1.3.3.5 or higher, or alternately you are using my prerooted firmware. Any other pre-rooted firmware is explicitly not supported and the installer.sh will validate this and refuse to proceed if you try to use it on different firmware.
Slicer Settings¶
There is an assumption that you are using a slicer like OrcaSlicer and Machine G-code like:
Machine start G-code
M104 S0 ; Stops OrcaSlicer from sending temp waits separately
M140 S0
START_PRINT EXTRUDER_TEMP=[nozzle_temperature_initial_layer] BED_TEMP=[bed_temperature_initial_layer_single]
Machine end G-code
Custom Bed Mesh Profile¶
If you want to select a specific predefined bed mesh profile (which disables adaptive mesh generation), you can pass in an additional START_PRINT
parameter:
You can either hard code it to a particular model, like BED_MESH_PROFILE=myprofile
or you can specify a profile based on orca slicer variables, such as BED_MESH_PROFILE="[curr_bed_type] - [filament_type]"
, but you have to make sure you have all the possible profiles
defined for each of the bed type and filament type combinations.
Probe Installation¶
Danger
Please note if you are not using ZeroDotCmd side mount you might have to make post install config changes to eddyng.cfg and btteddy-k1.cfg or btteddy-k1m.cfg before homing your printer, using screw tilt adjust or doing a bed mesh! Ignoring these instructions can lead to significant damage to your build plate and/or probe.
Ignoring these instructions can lead to significant damage to your build plate and/or probe.
Mount Options¶
Nozzle Offset¶
Warn
If you use a different probe mount you must make sure the bottom of the btt eddy coil is at least 3mm away from the nozzle tip, its better to be further away than closer. This is not the difference of the bottom of the case to the nozzle, the case is about 1.2mm thick, so this means you want the bottom of the case to be at least 2mm offset, its probably a good idea to look into mounts which do not use a case or a modified case with no bottom.
K1M vs K1/K1C/K1SE¶
Info

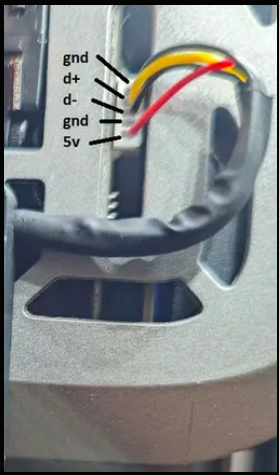

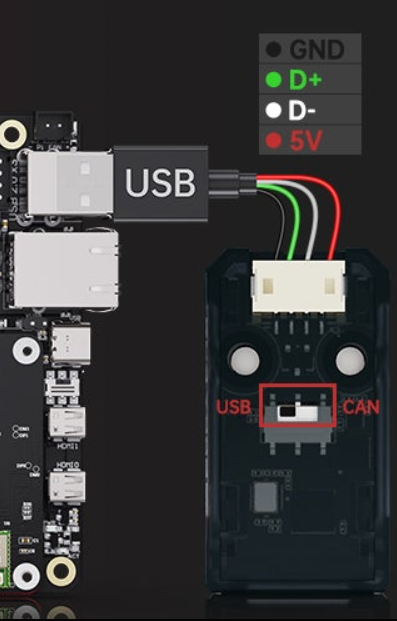

On a K1M you can use the lidar cable either directly by repinning it, or via the pass through lidar port on the toolhead. However you cannot use the lidar port on the toolhead for K1, K1C or K1SE. The reason this does not work is because for Lidar on the K1M creality actually routes a completely separate USB cable from the mainboard.
BTT Eddy Firmware¶
Warning
It is assumed that you have flashed your eddy with the firmware from https://github.com/pellcorp/klipper/blob/master/fw/K1/btteddy.uf2 before starting the installation!!!
I have put together a guide for flashing the btt eddy here
Installation¶
The installation can only be performed on a printer which has been rooted and ssh granted
You need root access, if you are not already root, then follow the excellent Helper Script Enable Root Access instructions.
Factory Reset¶
You must do a factory reset before running the installer.sh. Follow these steps to do a factory reset, which retains root access and skips the startup calibration checks:
wget --no-check-certificate https://raw.githubusercontent.com/pellcorp/creality/main/k1/services/S58factoryreset
chmod +x S58factoryreset
./S58factoryreset reset
Warn
It is really important you do not close the ssh session until you get this message:
Clone the Repo¶
git config --global http.sslVerify false
git clone https://github.com/pellcorp/creality.git /usr/data/pellcorp
sync
RPC Timeouts, try SSH Git Clone
mkdir -p /root/.ssh
wget --no-check-certificate "https://raw.githubusercontent.com/pellcorp/creality/main/k1/ssh/git-ssh.sh" -O /root/git-ssh.sh
chmod 777 /root/git-ssh.sh
wget --no-check-certificate "https://raw.githubusercontent.com/pellcorp/creality/main/k1/ssh/pellcorp-identity" -O /root/.ssh/pellcorp-identity
export GIT_SSH_IDENTITY=pellcorp
export GIT_SSH=/root/git-ssh.sh
git clone git@github.com:pellcorp/creality.git /usr/data/pellcorp
cd /usr/data/pellcorp && git remote set-url origin https://github.com/pellcorp/creality.git && cd
Config Overrides¶
If you have pellcorp-overrides in github but not stored locally, you need to recreate the /usr/data/pellcorp-overrides directory before running the installer.sh!
Run the installer¶
To run the script, you must specify the probe you want to use.
Warning
For Mount
you must specify the mount option for the mount you have used, if you do not do this the printer will be incorrectly configured for your mount, and bed meshes, x and y limits and related config will be wrong. Please refer to Mount Options for supported mounts.
If you are using a non-supported mount you should specify a mount option as close to your mount as possible and properly adjust your configuration after installation before trying to perform a bed mesh or Screws Tilt Calculate!
RPC failed; curl 18 transfer closed
You might get this error:
error: RPC failed; curl 18 transfer closed with outstanding read data remaining
fatal: the remote end hung up unexpectedly
fatal: early EOF
fatal: index-pack failed
Just rerun the installer.sh script (with the same probe argument), it will start from the stage that failed (most of the time this will be the Installing Klipper stage!)
You can also prefix the installer command with AF_GIT_CLONE=ssh
to force git to clone via ssh, this will take a lot longer, but it will never time out, so its good in a pinch if you are getting repeated klipper repo clone failures.
Post Installation¶
EddyNG Develop Branch¶
Simple AF maintains a branch of our klipper fork with the latest code from eddyng project develop branch, you can easily switch to this branch with this command:
You must make sure you flash your eddy with the fw/K1/btteddy.uf2
from this eddy_ng_develop when its updated
MCU Firmware updates are pending¶
At the end of the installer process if you get this message:
It means that new MCU firmware updates need to be applied and this can only be done by power cycling the printer. After your printer is power cycled you can verify firmware was updated with the CHECK_FIRMWARE
macro from Fluidd or Mainsail, if you see this message:
Your printer MCU firmware was updated successfully. If you still see the MCU Firmware updates are pending you need to power cycle your printer!
message after a power cycle, check the /tmp/mcu_update.log
, you may be asked to provide this file on Discord if you need additional assistance, sometimes an additional power cycle can solve the problem, there is a very short window of time (15 seconds) in which the MCU firmware can be updated, so there is a chance it will work after an additional power cycle.
Verify USB Key¶
Tip
You should verify your USB thumb drive (aka USB Key) often just to make sure you have something if you need to unbrick your printer, simply type CHECK_USB_KEY
or hit the button in Fluidd / Mainsail
Note
If you have plugged your btt eddy into the front usb port, you are going to have to temporarily remove the btt eddy from the front usb slot and replace it with your USB thumb drive, after you have finished verifying the USB thumb drive can be used in an emergency, you can replace the btt eddy into the front usb slot and restart klipper or power cycle your printer.
It is important to make sure you have a way to emergency factory reset the printer, if the worst happens. There is a macro in Simple AF called CHECK_USB_KEY
that will wait for you to plug a USB thumb drive (aka USB key) in and tell you if it was able to be successfully mounted.
- If you get the message:
INFO - USB Key was recognised and mounted correctly (/tmp/udisk/sda1)
, your USB thumb drive (aka USB key) is perfect to use for a factory reset. - If you get no message at all before the script ends (after 60 seconds), your USB thumb drive (aka USB key) is defective. You can check the
messages
file in the logs section of your UI to get more details about why the usb key could not be mounted!
Troubleshooting¶
Manual BTT Eddy Serial Device configuration¶
You can run the following command to fix your serial if you forgot to plug your btt eddy in during the installation or update:
Calibration¶
Calibrating the eddy should be as easy as running the PROBE_EDDY_NG_SETUP
, first step is to home X and Y:
- Home XY (
G28 X Y
) - Make sure nozzle is centred on bed
- Heat Nozzle to 150c (
M109 S150
) so that any filament can be removed from nozzle - Run
PROBE_EDDY_NG_SETUP
Upon completionSAVE_CONFIG
Note
Is normal to show the Z position at almost at the max height of the printer even if the nozzle is somewhere in the middle or even close to the bed, this is not a bug, its intentional. Until this calibration step is completed, the Z axes cannot be homed, so we make the printer pretend the bed is down the bottom of the printer so that you can freely move the bed up to meet the nozzle during the paper test without running into out of range issues. You however won't be able to move the bed further away from the nozzle more than a few mm.
Source: https://github.com/vvuk/eddy-ng/wiki#calibration
First Print¶
For this first print you can go and do the tuning first (PID Tuning, etc) or you can go ahead and optimise your tap_adjust_z using baby stepping, as documented here: https://docs.cartographer3d.com/cartographer-probe/installation-and-setup/installation/first-print
In fluidd the save button after you finish or cancel your print can be a bit hard to find, look for
Tuning¶
At least PID tuning (bed and extruder) and input shaping is required for acceptable printing. If you try and print after running the installer.sh and a power cycle but before any calibration you will most likely have horrendous quality, the worst you have ever seen on the k1. After PID tuning and input shaping you should see the same kind of quality as you get with stock k1 + input shaper fix.
Quick Start¶
You can use the QUICK_START Macro to do Bed and Nozzle PID Tuning and Input Shaping.
Pid Tuning¶
Source: Calibrate Pid Settings
For example you might run these:
Note
The PID_CALIBRATE_BED
and PID_CALIBRATE_HOTEND
macros are located in the useful_macros.cfg
file and they have defaults values for BED_TEMP and HOTEND_TEMP so you can just run them by clicking on them if you want that same temperature.
Input Shaping¶
There is no default configuration for input shaping so it is essentially disabled out of the box.
You can use the SHAPER_CALIBRATE
macro to run input shaping, just be sure to SAVE CONFIG
at the end, to choose the automatically selected shaper config, be aware though that the shaper chosen might be sub-optimal due to a slight difference in vibrations between two options. So you should probably review the output and potentially choose an alternative if it gives you higher recommended max acceleration for minimal increase in vibration.
Other Calibrations¶
Info
The default value for pressure advance is set to 0.04
Refer to Orcaslicer Calibration for more calibrations
Refer to the Ellis Print Tuning Guide for more great tuning ideas.
