Cartographer

Where can I get help?

Come on over to the pellcorp discord server, the #simple-af-carto channel has been setup for anyone wanting support for cartographer.

invite

Thanks

Thanks to Richard from https://cartographer3d.com and Zarboz from https://wattskraken.xyz/ for donating Cartographers to the Simple AF project to add support and continue to support the cartographer.

Firmware requirements

K1 Series

This guide assumes you have a K1, K1C or K1 Max and you are running stock creality firmware 1.3.3.5 or higher, or alternately you are using my prerooted firmware. Any other pre-rooted firmware is explicitly not supported and the installer.sh will validate this and refuse to proceed if you try to use it on different firmware.

Ender 5 Max

You must be using pre-rooted firmware, which is not available from Creality at the moment, you can get it from https://github.com/zevaryx/ender-5-max-firmware

Slicer Settings

Warning

If you have used a cartographer with k1-klipper, please note that the PRINT_START macro specified in their docs is not supported by this project. You must change your Slicer Start Print Machine G-Code (see next)

There is an assumption that you are using a slicer like OrcaSlicer and Machine G-code like:


Machine start G-code

M104 S0 ; Stops OrcaSlicer from sending temp waits separately
M140 S0
START_PRINT EXTRUDER_TEMP=[nozzle_temperature_initial_layer] BED_TEMP=[bed_temperature_initial_layer_single]

Machine end G-code

END_PRINT

Custom Bed Mesh Profile

If you want to select a specific predefined bed mesh profile (which disables adaptive mesh generation), you can pass in an additional START_PRINT parameter:

You can either hard code it to a particular model, like BED_MESH_PROFILE=myprofile or you can specify a profile based on orca slicer variables, such as BED_MESH_PROFILE="[curr_bed_type] - [filament_type]", but you have to make sure you have all the possible profiles defined for each of the bed type and filament type combinations.


Probe Installation

Danger

If you are not using a side mount you must verify config changes for cartotouch.cfg and cartographer-k1.cfg or cartographer-k1m.cfg before homing your printer, using Screws Tilt Calculate or doing a bed mesh!

Ignoring these instructions can lead to significant damage to your build plate and/or probe.

Mount Options

Mount Carto URL Notes
Default Right Angle https://www.printables.com/model/1037606-cartographer-3d-right-angle-k1-series-mount
D3vilStock Flat Pack https://www.printables.com/model/684338-k1-k1max-eddy-current-mount-cartographer
BootyGantry Right Angle https://github.com/tlace17/K1-Linear-Rail-Gantry/blob/main/STLs/Probe%20Mounts/Rail%20Carriage%20Carto%20Mount.stl May require shimming for correct nozzle offset
SkeletorMK7 Low Profile https://www.printables.com/model/833769-the-skeletor-collection-a-creality-k1k1-maxk1c-coo This is only for the low profile cartographer version of the mount!!!
PurcellV5 Right Angle https://www.printables.com/model/1071493-cartographer-probe-side-mount-options-for-creality
SimplyHexed Right Angle https://www.printables.com/model/1209230-ender-5-max-simply-hexed Ender 5 Max only!

Nozzle Offset

Warn

It is vital that you verify the model to nozzle tip distance is within the valid range of 2.6 to 3mm. Anything out of this range will cause you problems when it comes time to doing the touch calibration, you can use this tool to verify:

https://www.printables.com/model/1060868-cartographer-probe-nozzle-offset-tool

Or for side mounted probes you may want to consider this version:

https://www.printables.com/model/1121309-cartographer-probe-nozzle-offset-tool-x-offset

K1M vs K1/K1C/K1SE

Info

On a K1M you can use the lidar cable either directly by repinning it, or via the pass through lidar port on the toolhead. However you cannot use the lidar port on the toolhead for K1, K1C or K1SE. The reason this does not work is because for Lidar on the K1M creality actually routes a completely separate USB cable from the mainboard.

Cartographer Firmware

Warning

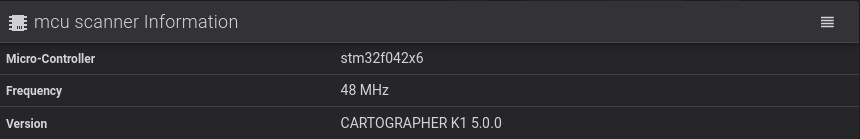

You must have flashed your cartographer with CARTOGRAPHER K1 5.1.0 survey firmware before starting the installation:


There is a guide for this here

Installation

The installation can only be performed on a printer which has been rooted and ssh granted

You need root access, if you are not already root, then follow the excellent Helper Script Enable Root Access instructions.

Tip

ZeroDotCmd (aka Zero on discord) has provided an excellent Cartographer installation video, you can find it https://www.youtube.com/watch?v=GuxMITM9o4I

Factory Reset

You must do a factory reset before running the installer.sh. Follow these steps to do a factory reset, which retains root access and skips the startup calibration checks:

wget --no-check-certificate  https://raw.githubusercontent.com/pellcorp/creality/main/k1/services/S58factoryreset
chmod +x S58factoryreset
./S58factoryreset reset

Warn

It is really important you do not close the ssh session until you get this message:


Clone the Repo

git config --global http.sslVerify false
git clone https://github.com/pellcorp/creality.git /usr/data/pellcorp
sync
RPC Timeouts, try SSH Git Clone
mkdir -p /root/.ssh
wget --no-check-certificate "https://raw.githubusercontent.com/pellcorp/creality/main/k1/ssh/git-ssh.sh" -O /root/git-ssh.sh
chmod 777 /root/git-ssh.sh
wget --no-check-certificate "https://raw.githubusercontent.com/pellcorp/creality/main/k1/ssh/pellcorp-identity" -O /root/.ssh/pellcorp-identity
export GIT_SSH_IDENTITY=pellcorp
export GIT_SSH=/root/git-ssh.sh
git clone git@github.com:pellcorp/creality.git /usr/data/pellcorp
cd /usr/data/pellcorp && git remote set-url origin https://github.com/pellcorp/creality.git && cd

Config Overrides

If you have pellcorp-overrides in github but not stored locally, you need to recreate the /usr/data/pellcorp-overrides directory before running the installer.sh!

Run the installer

To run the script, you must use the following command:

/usr/data/pellcorp/k1/installer.sh --install cartotouch --mount Mount

Warning

For Mount you must specify the mount option for the mount you have used, if you do not do this the printer will be incorrectly configured for your mount, and bed meshes, x and y limits and related config will be wrong. Please refer to Mount Options for supported mounts.

If you are using a non-supported mount you should specify a mount option as close to your mount as possible and properly adjust your configuration after installation before trying to perform a bed mesh or Screws Tilt Calculate!

RPC failed; curl 18 transfer closed

You might get this error:

error: RPC failed; curl 18 transfer closed with outstanding read data remaining
fatal: the remote end hung up unexpectedly
fatal: early EOF
fatal: index-pack failed

Just rerun the installer.sh script (with the same probe argument), it will start from the stage that failed (most of the time this will be the Installing Klipper stage!)

You can also prefix the installer command with AF_GIT_CLONE=ssh to force git to clone via ssh, this will take a lot longer, but it will never time out, so its good in a pinch if you are getting repeated klipper repo clone failures.

Post Installation

MCU Firmware updates are pending

At the end of the installer process if you get this message:

WARNING: MCU Firmware updates are pending you need to power cycle your printer!

It means that new MCU firmware updates need to be applied and this can only be done by power cycling the printer. After your printer is power cycled you can verify firmware was updated with the CHECK_FIRMWARE macro from Fluidd or Mainsail, if you see this message:

INFO: Your MCU Firmware is up to date!

Your printer MCU firmware was updated successfully. If you still see the MCU Firmware updates are pending you need to power cycle your printer! message after a power cycle, check the /tmp/mcu_update.log, you may be asked to provide this file on Discord if you need additional assistance, sometimes an additional power cycle can solve the problem, there is a very short window of time (15 seconds) in which the MCU firmware can be updated, so there is a chance it will work after an additional power cycle.

Verify USB Key

Tip

You should verify your USB thumb drive (aka USB key) often just to make sure you have something if you need to unbrick your printer, simply type CHECK_USB_KEY or hit the button in Fluidd / Mainsail

Note

If you have plugged your cartographer into the front usb port, you are going to have to temporarily remove the cartographer from the front usb slot and replace it with your USB thumb drive (aka USB key), after you have finished verifying the USB thumb drive (aka USB key) can be used in an emergency, you can replace the cartographer into the front usb slot and restart klipper or power cycle your printer.

It is important to make sure you have a way to emergency factory reset the printer, if the worst happens. There is a macro in Simple AF called CHECK_USB_KEY that will wait for you to plug a USB thumb drive (aka USB key) in and tell you if it was able to be successfully mounted.


  • If you get the message: INFO - USB Key was recognised and mounted correctly (/tmp/udisk/sda1), your USB thumb drive (aka USB key) is perfect to use for a factory reset.
  • If you get no message at all before the script ends (after 60 seconds), your USB thumb drive (aka USB key) is defective. You can check the messages file in the logs section of your UI to get more details about why the usb key could not be mounted!

Calibration

Please make sure to remove any scanner related config from the save config section at the bottom of printer.cfg and save and restart before re-calibrating.

Recalibrating

If you are recalibrating, the follow SAVE_CONFIG sections should be removed:

  • [scanner model default]
  • [scanner]
  • [axis_twist_compensation]
  • [bed_mesh]

Warn

Please do not remove the [scanner] section defined at the end of printer.cfg above the save config section.

Manual Cartographer Calibrate

It is strongly recommended to disable the camera for these calibration steps, just use the STOP_CAMERA macro to do this.

  1. Run the STOP_CAMERA macro to stop the camera
  2. Home X Y (G28 X Y)
  3. Heat Nozzle to 150c (M109 S150) so that any filament can be removed from nozzle
  4. Make sure nozzle is centred on bed
  5. Run CARTOGRAPHER_CALIBRATE METHOD=manual Follow the Paper Test Method
    Upon completion SAVE_CONFIG

Note

Is normal to show the Z position at almost at the max height of the printer even if the nozzle is somewhere in the middle or even close to the bed, this is not a bug, its intentional. Until this calibration step is completed, the Z axes cannot be homed, so we make the printer pretend the bed is down the bottom of the printer so that you can freely move the bed up to meet the nozzle during the paper test without running into out of range issues. You however won't be able to move the bed further away from the nozzle more than a few mm.


Warn

Do not use a metal feeler gauge for this step, it could interfere with calibration!!!

After the save config you have to do the cartographer threshold scan (see next)

Cartographer Threshold Scan

It is strongly recommended to disable the camera for these calibration steps, just use the STOP_CAMERA macro to do this.

Danger

For this next step, it is really important to be near your printer for this step, because if there is any issue with the printer configuration or your carto probe, its possible the nozzle will dig itself into the bed, so be hovering over that e-stop button!

  1. Run the STOP_CAMERA macro to stop the camera
  2. Home All (G28)
  3. Make sure nozzle is centred on bed
  4. Heat Nozzle to 150c (M109 S150) so that any filament can be removed from nozzle
  5. Execute CARTOGRAPHER_THRESHOLD_SCAN SPEED=2 MIN=1500 MAX=5000
    Upon completion SAVE_CONFIG

After the save config you have to do the touch calibration.

Cartographer Touch Calibration

It is strongly recommended to disable the camera for these calibration steps, just use the STOP_CAMERA macro to do this.

Danger

For this next step, it is really important to be near your printer for this step, because if there is any issue with the printer configuration or your carto probe, its possible the nozzle will dig itself into the bed, so be hovering over that e-stop button!

  1. Run the STOP_CAMERA macro to stop the camera
  2. Home All (G28)
  3. Heat Nozzle to 150c (M109 S150) so that any filament can be removed from nozzle
  4. Execute CARTOGRAPHER_CALIBRATE
    Upon completion SAVE_CONFIG

Tip

If this fails after 3 tries, you should check to make sure there is not filament stuck to the bottom of your nozzle!

Source: https://docs.cartographer3d.com/cartographer-probe/survey-touch

Axis Twist Compensation

Next it is highly recommended to perform axis twist compensation calibration if you are using a rear mount before doing anything else, this will affect the quality of your bed mesh, so best to do it before.

  1. Home All (G28)
  2. Run AXIS_TWIST_COMPENSATION_CALIBRATE The calibration wizard will prompt you to measure the probe Z offset at a few points along the bed
    Upon completion SAVE_CONFIG

Warn

Do not use a metal feeler gauge for this step, it could interfere with calibration!!!

Source: https://www.klipper3d.org/Axis_Twist_Compensation.html

Tuning

At least PID tuning (bed and extruder) and input shaping is required for acceptable printing. If you try and print after running the installer.sh and a power cycle but before any calibration you will most likely have horrendous quality, the worst you have ever seen on the k1. After PID tuning and input shaping you should see the same kind of quality as you get with stock k1 + input shaper fix.

Quick Start

You can use the QUICK_START Macro to do Bed and Nozzle PID Tuning and Input Shaping.

Pid Tuning

Source: Calibrate Pid Settings

For example you might run these:

PID_CALIBRATE_BED BED_TEMP=65
PID_CALIBRATE_HOTEND HOTEND_TEMP=230

Note

The PID_CALIBRATE_BED and PID_CALIBRATE_HOTEND macros are located in the useful_macros.cfg file and they have defaults values for BED_TEMP and HOTEND_TEMP so you can just run them by clicking on them if you want that same temperature.

Input Shaping

There is no default configuration for input shaping so it is essentially disabled out of the box.

You can use the SHAPER_CALIBRATE macro to run input shaping, just be sure to SAVE CONFIG at the end, to choose the automatically selected shaper config, be aware though that the shaper chosen might be sub-optimal due to a slight difference in vibrations between two options. So you should probably review the output and potentially choose an alternative if it gives you higher recommended max acceleration for minimal increase in vibration.

Input Shaper Auto Calibration

First Print

For this first print you can go and do the tuning first (PID Tuning, etc) or you can go ahead and optimise your scanner_touch_z_offset using baby stepping, as documented here: https://docs.cartographer3d.com/cartographer-probe/installation-and-setup/installation/first-print

In fluidd the save button after you finish or cancel your print can be a bit hard to find, look for


Other Calibrations

Info

The default value for pressure advance is set to 0.04

Refer to Orcaslicer Calibration for more calibrations

Refer to the Ellis Print Tuning Guide for more great tuning ideas.

Scan Calibration Method

Some cartographer users choose to use scan only instead of touch and that is easy enough to do, you can setup for scan immediately after installation, no need to do the 3 step calibration as for touch!

You can run the following gcode command:

 PROBE_SWITCH MODE=scan

And then SAVE_CONFIG

It is strongly recommended to disable the camera for this calibration step, just use the STOP_CAMERA macro to do this.

  1. Run the STOP_CAMERA macro to stop the camera
  2. Home X Y (G28 X Y)
  3. Heat Nozzle to 150c (M109 S150) so that any filament can be removed from nozzle
  4. Make sure nozzle is centred on bed
  5. Run CARTOGRAPHER_CALIBRATE METHOD=manual Follow the Paper Test Method
    Upon completion SAVE_CONFIG

Warn

Do not use a metal feeler gauge for this step, it could interfere with calibration!!!

You can then use the CARTOGRAPHER_MODEL parameter to start print from your slicer to select different filament profiles, this is required if you print with different filaments and/or use different bed aurfaces.

Cartographer Model

If you want to select a particular cartographer model other than the default you can pass in an additional START_PRINT parameter:


You can either hard code it to a particular model, like CARTOGRAPHER_MODEL=mymodel or you can specify a model based on orca slicer variables, such as CARTOGRAPHER_MODEL="[curr_bed_type] - [filament_type]", but you have to make sure you have all the possible models defined for each of the bed type and filament type combinations.

Troubleshooting

https://docs.cartographer3d.com/cartographer-probe/troubleshooting

Repo has diverged from remote


You need to click RECOVER and then run from ssh:

/usr/data/cartographer-klipper/install.sh

Error during probe mcu identification, check connection

If you get the following error, it means that the cartographer is not connected to the printer. This is either because its physically not connected, the wiring is wrong, the usb subsystem has disconnected the carto during a restart or the serial id is wrong


So from ssh run a lsusb and make sure you can see:


If you cannot see it in lsusb, then it very likely means either the carto is wired incorrectly, or if was working, it just means that an attempt to restart the carto failed because the K1 refused to recognise it, there is no recourse except to Reboot the printer via Fluidd / Mainsail in this case.

If you can, then verify that the serial id matches:


Make sure it matches the serial in cartotouch.cfg:


Manual Cartographer Serial Device configuration

You can run the following command to fix your serial if you forgot to plug your cartographer in during the installation or update:

/usr/data/pellcorp/k1/installer.sh --fix-serial

Timer too close and microsteps

For cartographer you cannot use more than microsteps: 32, the MCU cannot handle high microsteps and cartographer, it puts too much pressure on the system and it will cause stuttering during bed meshes.
